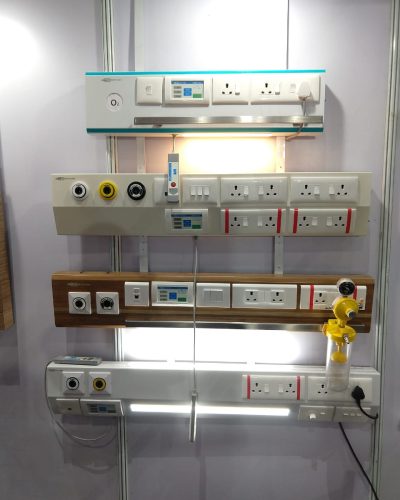

BED HEAD PANEL 9060 SERIES :
Medisystems Bed-Head Panels are fully pre-fabricated, elegant, aluminium panels designed for organized convergence of:
- Electrical Power
- Illumination
- Communications
- Biosignals
- Data
- Medical Gas
- Other Optional Utilities e.g. Examination lamps, B.P. Instrument, Medical Rail & Medical Rail mounted accessories.
Flexible configurations in horizontally or vertically oriented panels are available in a choice of colours, for ICU’s, Patient Rooms, General Wards or Examination Rooms. Accessories include stainless steel medical rails in international dimensions, rail mounted accessories like I-V poles, infusion pump stack holders, utility baskets, examination lamps, monitor stands and patient–bed lamps.
BED HEAD PANELS
Products Advantages
- Space saving flexibility
- Easy accessibility of utilities
- Easy to maintain and hygienic design
- Durable finishes and materials employed
- Provision for protective electrical and data enclosures
- Secure wiring with flame retardant cables
- Safety partitioning as per ISO: 13485 standards
- Choice of colours, patterns & finishes
- Range of useful rail accessories
- Horizontal and Vertical orientation
- Wall mountable or concealed on external surfaces
- Raceway type with single, double or triple duct design for gas lines, data & electrical.
- Prewired and ready-to-use with ease of connectivity

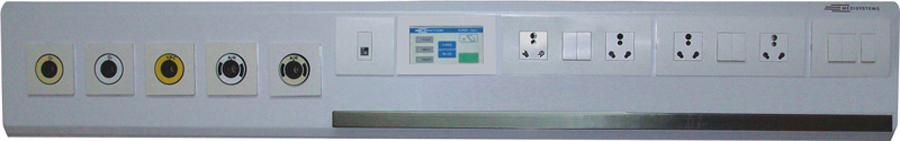

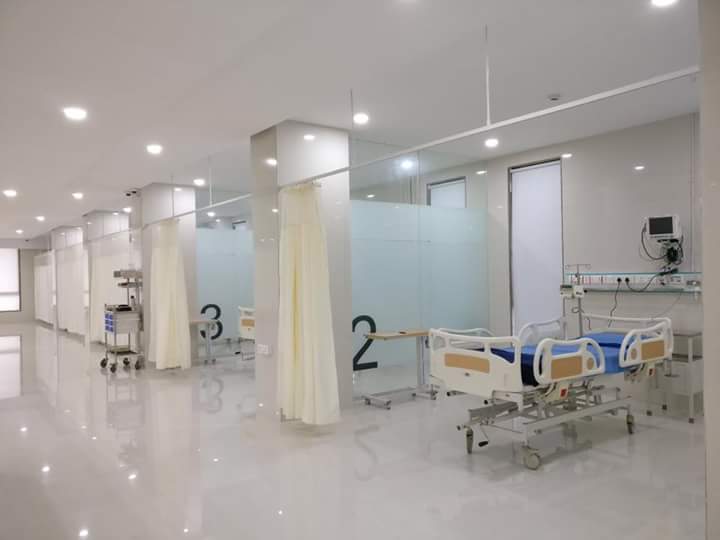

ICU Panels, Models 9060A
Wall mounted, Mains operated bed-head panel specially designed for critical areas like ICU/MICU/SICU/NICU/PICU, Pre/Post-Op/Recovery & Emergency beds
- Extruded Aluminium sheet body, machine pressed, pre-treated a smooth easy-to-clean surface and durable finish. and powder coated with
- Panel lengths can be increased to include requisite gas, data and electrical outlets.
- Location of medical gas and electrical fittings are designed to meet safety criteria as well as satisfy customer's configuration and requirements.
- Panels can also be prewired using flame retardant cables and electrically harnessed for safety and come with premium grade electrical and data fittings. These are ready-to-connect panels making installation safer and easier.
- Removable front surface for servicing gas, data and electrical outlets and components.
- Panel can include an internationally dimensioned medical rail in S.S. 304. Rails are designed to carry useful accessories like I.V. Pole, syringe pump holder, utility basket. case sheet holder, medicine bowl holder, B.P. instrument holder, monitor tray, etc.
BED HEAD PANELS :
Product Advantages:
- Space saving flexibility
- Easy accessibility of utilities
- Easy to maintain and hygienic design
- Durable finishes and materials employed
- Provision for protective electrical and data enclosures
- Secure wiring with flame retardant cables
- Safety partitioning as per ISO: 13485 standards
- Choice of colours, patterns & finishes
- Range of useful rail accessories
- Horizontal and Vertical orientation
- Wall mountable or concealed on external surfaces
- Raceway type with single, double or triple duct design for gas lines, data & electrical.
- Prewired and ready-to-use with ease of connectivity
Products Advantages
Powder coating through a seven stage process ensures lasting and durable coat. 500 hrs ‘Salt Test’ certificates can be provided if required.
Colour combinations can be matched as per hospital/ user’s requirement (applicable only if qnty. > 100 mtrs.)
Panels manufactured in an ISO: 13485 certified organisation.
BED HEAD PANEL 9060 SERIES :
Medisystems Bed-Head Panels are fully pre-fabricated, elegant, aluminium panels designed for organized convergence of:
- Electrical Power
- Illumination
- Communications
- Biosignals
- Data
- Medical Gas
- Other Optional Utilities e.g. Examination lamps, B.P. Instrument, Medical Rail & Medical Rail mounted accessories.
Flexible configurations in horizontally or vertically oriented panels are available in a choice of colours, for ICU’s, Patient Rooms, General Wards or Examination Rooms. Accessories include stainless steel medical rails in international dimensions, rail mounted accessories like I-V poles, infusion pump stack holders, utility baskets, examination lamps, monitor stands and patient–bed lamps.

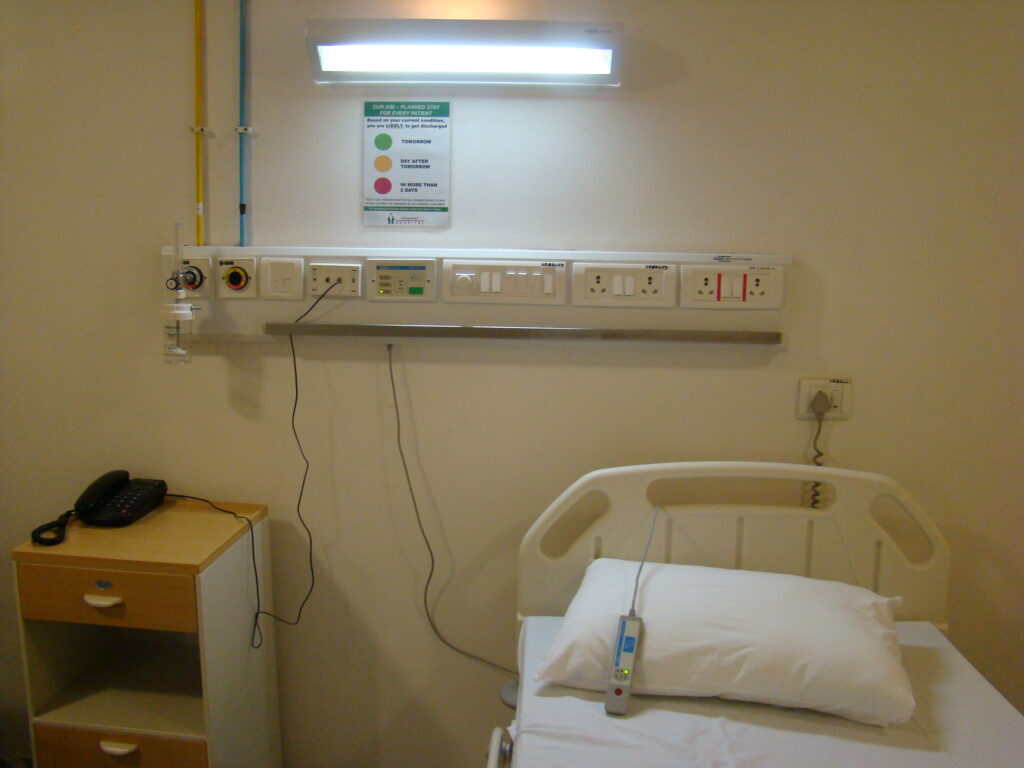

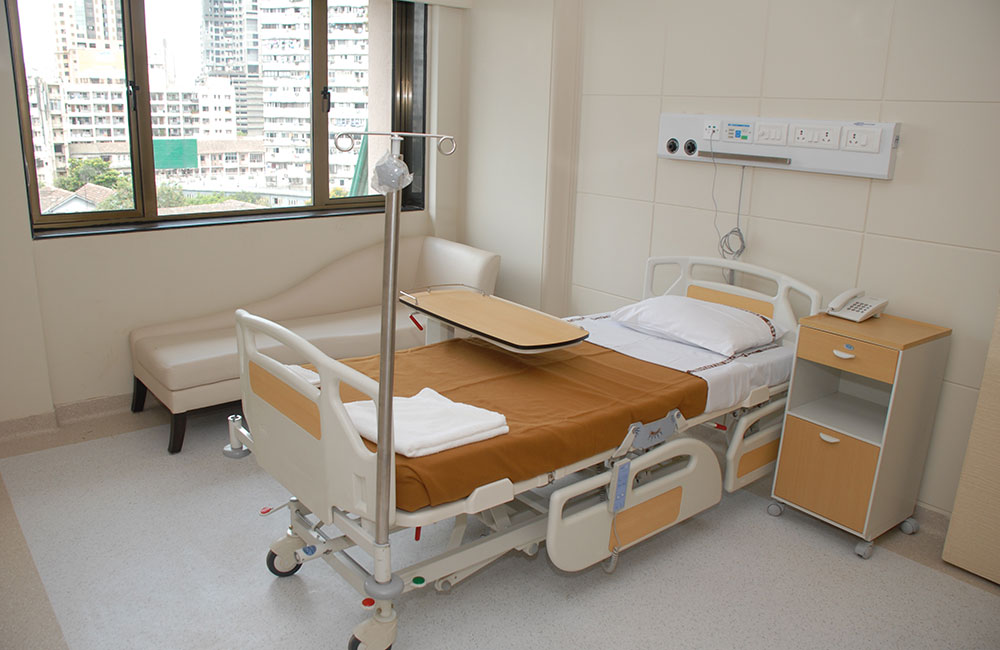

ROOM BED-HEAD PANEL, MODEL 9060B
- Wall Mounted, Mains Operated Bed-head panels specially designed for use in Private, Sharing & Deluxe Rooms.
- Extruded Aluminium sheet body, machine pressed, pre-treated and powder coated with a smooth easy-to-clean surface and durable finish.
- Panel lengths can be increased to include requisite gas, data and electrical outlets.
- Location of medical gas and electrical fittings are designed to meet safety criteria as well as satisfy customer's configuration and requirements.
- Panels can be in colour of choice and patterns to match with room interiors. (applicable only if qty.> 20).
- Panels can also be pre-wired using flame retardant cables and electrically harnessed for safety and come with premium grade electrical and data fittings. These are ready-to-connect panels making installation safer, faster and easier.
- Removable front surface for servicing gas, data and electrical outlets and components.
- Panel can include an internationally dimensioned medical rail in S.S. 304. Rails are designed to carry useful accessories like I.V. Pole, syringe pump holder, utility basket, case sheet holder, medicine bowl holder, B.P. instrument holder, monitor tray, etc.

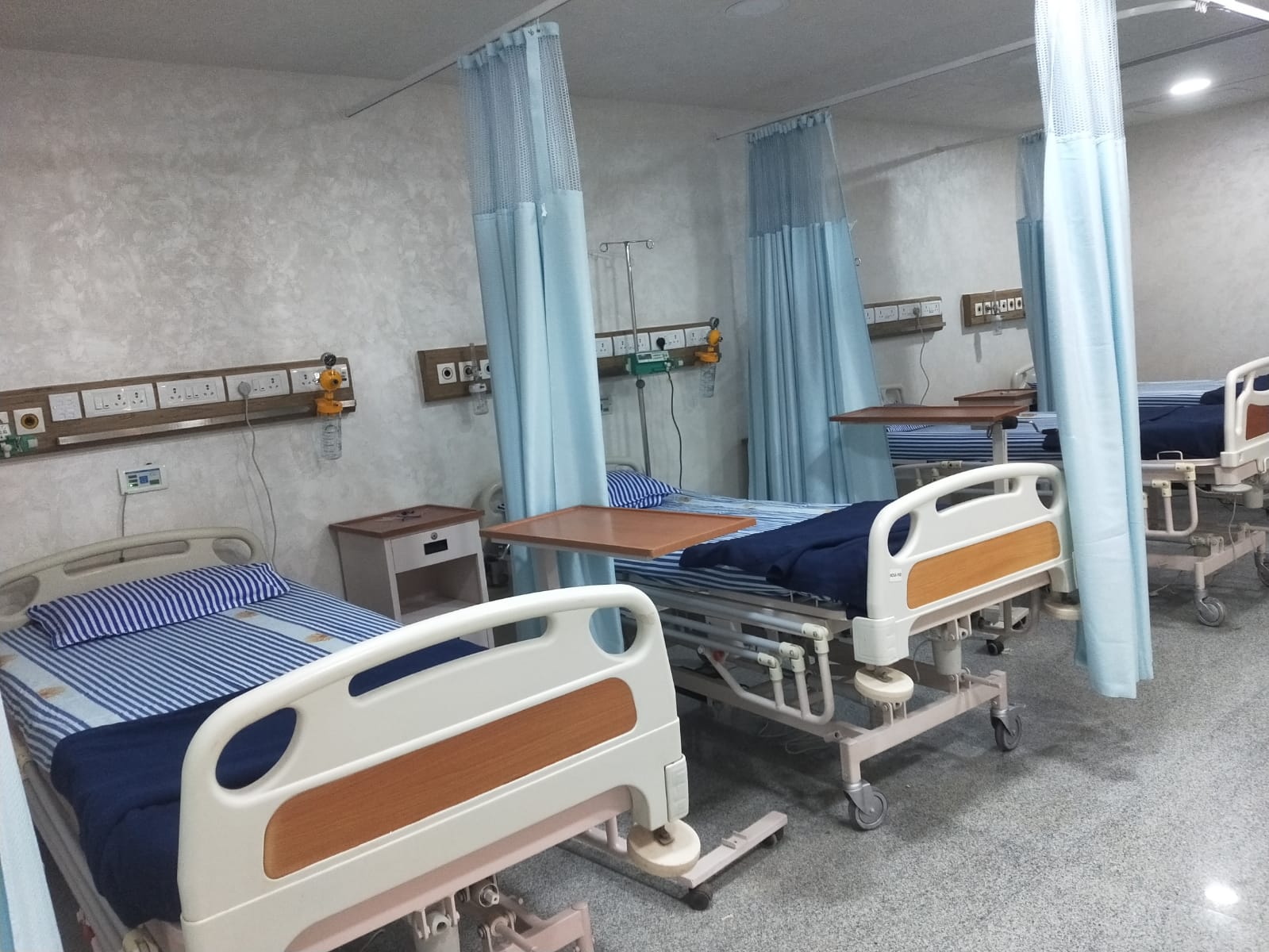

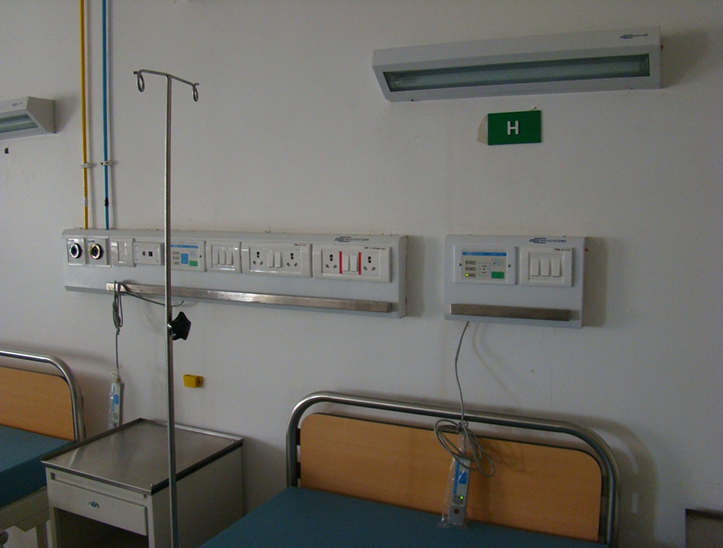

WARD BED-HEAD PANEL, MODEL 9060C
- Wall Mounted, Mains Operated Bed-Head Panel for use on General Ward beds, light duty day care & ambulatory patient beds, examination/consulting rooms beds.
- Extruded Aluminium sheet body, machine pressed, pre-treated and powder coated with a smooth easy-to-clean surface and surable finish.
- Panel lengths can be increased to include requisite gas, data and electrical outlets. can be designed to accomodate sharing configurations.
- Can also be designed for placement in the centre between two beds in semi private rooms with utilities for each side.
- Location of medical gas and electrical fittings are designed to meet safety criteria as well as satisfy customer's configuration and requirements.
- Panels can be in colour of choice and patterns to match with interior area decor. (applicable only if qty. >20).
- Panels can also be pre-wired using flame retardant cables and electrically harnessed for safety and come with premium grade electrical and data fittings. These are ready-to-connect panels making installation safer, faster and easier.
- Removable front surface for servicing gas, data and electrical outlets and components.
- Panel can include an internationally dimensioned medical rail in S.S. 304. Rails are designed to carry useful accessories like I.V. Pole, syringe pump holder, utility basket, case sheet holder, medicine bowl holder, B.P. instrument holder, monitor tray, etc.

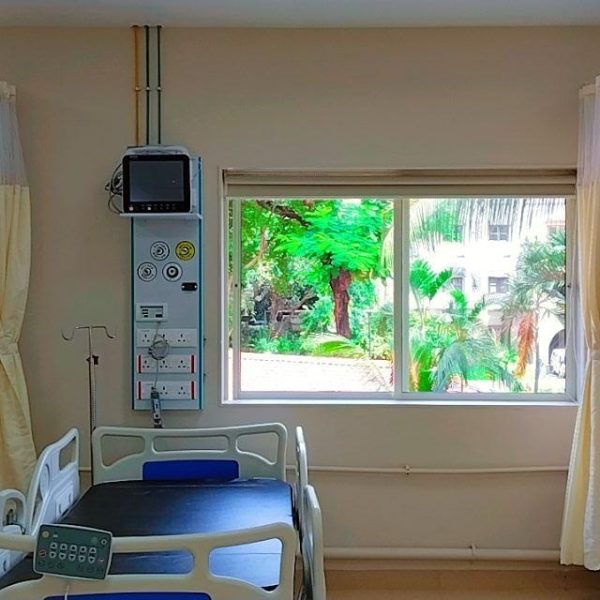

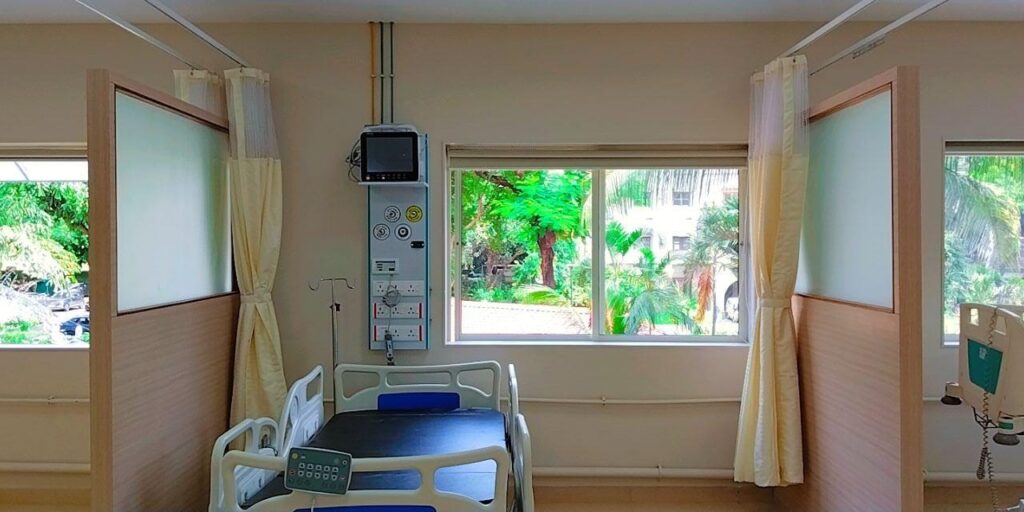

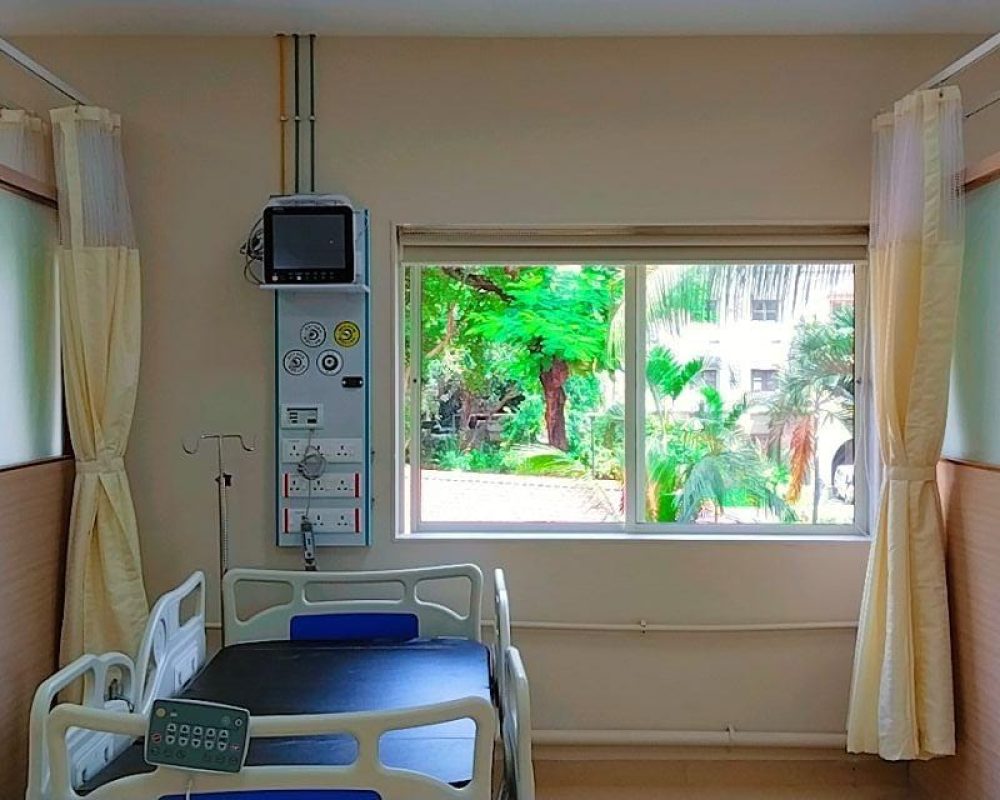

VERTICAL BED-HEAD PANEL, MODEL 9060V
- Surface Mounted. Mains Operated Bed-Head Panel for use on ICU. Recovery & Patient Room Beds.
- Extruded Aluminium sheet body, machine pressed, pre-treated and powder coated with a smooth easy-to-clean surface and durable finish.
- Designed for laminated or wooden surfaces with concealed gas lines and electricals.
- Panel front comes with an aesthetically slim profile.
- Panel height and width can be adjusted to include requisite gas, data and electrical outlets. Also for architectural or décor considerations.
- Location of medical gas and electrical fittings are designed to meet safety criteria as well as satisfy customer's configuration and requirements.
- Panels can be in colour of choice and patternsto match with room interiors. (applicable only if qty. > 20).
- Panels can also be pre-wired using flame retardant cables and electrically harnessed for safety and come with premium grade electrical and data fittings. These are ready-to-connect panels making installation safer, faster and easier.
- Removable front surface for servicing gas, data and electrical outlets and components.
- Panel can include an internationally dimensioned medical rail in S.S. 304. Rails are designed to carry useful accessories like I.V. Pole, syringe pump holder, utility basket, case sheet holder, medicine bowl holder, B.P. instrurnent holder, monitor tray, etc.
- Double rails or 25 mm, dia tubes can also be provided for easy access of utilities form either side

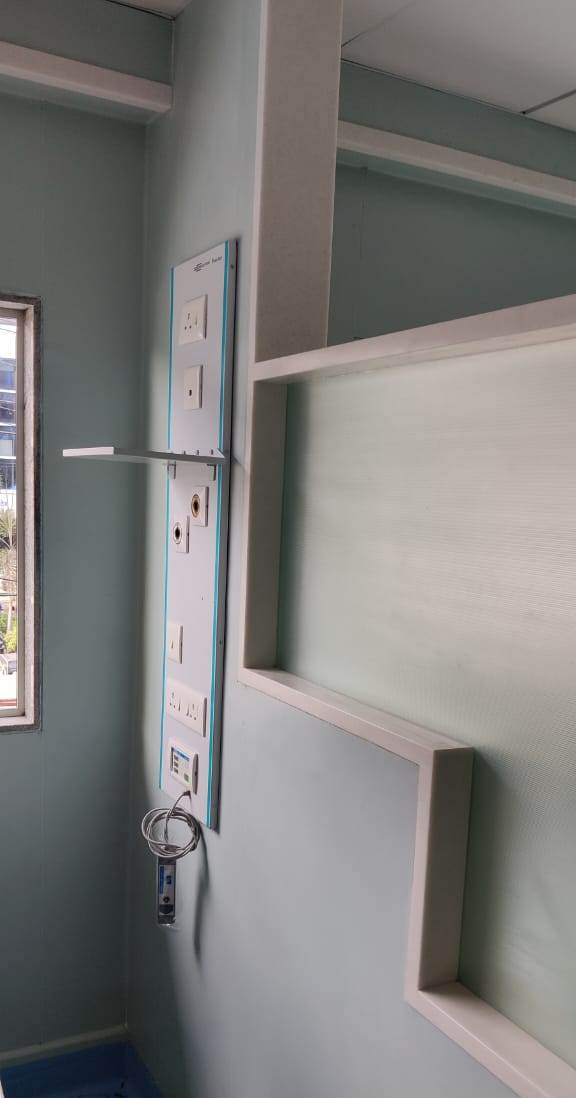

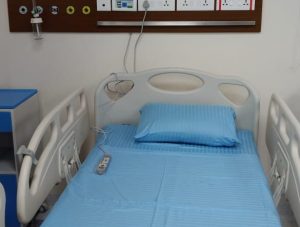

Concealed Gas Panels Model 9060 X
- Surface Mounted. Mains Operated Bed-Head Panel for use on ICU. Recovery & Patient Room Beds.
- Extruded Aluminium sheet body, machine pressed, pre-treated and powder coated with a smooth easy-to-clean surface and durable finish.
- Designed for laminated or wooden surfaces with concealed gas lines and electricals.
- Panel front comes with an aesthetically slim profile.
- Panel height and width can be adjusted to include requisite gas, data and electrical outlets. Also for architectural or décor considerations.
- Location of medical gas and electrical fittings are designed to meet safety criteria as well as satisfy customer's configuration and requirements.
- Panels can be in colour of choice and patternsto match with room interiors. (applicable only if qty. > 20).
- Panels can also be pre-wired using flame retardant cables and electrically harnessed for safety and come with premium grade electrical and data fittings. These are ready-to-connect panels making installation safer, faster and easier.
- Removable front surface for servicing gas, data and electrical outlets and components.
- Panel can include an internationally dimensioned medical rail in S.S. 304. Rails are designed to carry useful accessories like I.V. Pole, syringe pump holder, utility basket, case sheet holder, medicine bowl holder, B.P. instrurnent holder, monitor tray, etc.

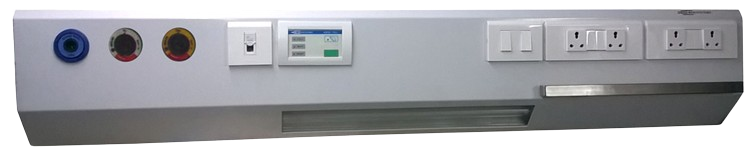

Raceway Type/Running Length Panels, Model 9060R
- Wall Mounted, Mains Operated Bed-Head Panel for use on ICU, Recovery & Patient Room Beds.
- Extruded Aluminium sheet body, machine pressed, pre-treated and powder coated with a smooth easy-to-clean surface and durable finish.
- Designed in running lengths with concealed gas lines and electricals. Can run wall-to wall with one or more columns and bends.
- Raceway type with single, double or triple duct design for gas lines, data and electricals.
- Panel width can be adjusted to include requisite gas outlets, lines, data and electrical outlets
- Additional panel trunking length can be included for vertical gas lines.
- Location of medical gas and electrical fittings are designed to meet safety criteria as well as satisfy customer's configuration and requirements.
- Panels can be in colour of choice and patterns to match with room Interiors. (applicable only if qty. > 100 mts.)
- Panels can also be pre-wired using flame retardant cables and electrically harnessed for safety and come with premium grade electrical and data fittings. These are ready-to-connect panels making installation safer, faster and easier.
- Removable front surface for servicing gas, data and electrical outlets and components.
- Panel can include an internationally dimensioned medical rail in S.S. 304. Rails are designed to carry useful accessories like I.V. Pole, syringe pump holder, utility basket, case sheet holder, medicine bowl holder, B.P. instrument holder, monitor tray, etc.
- Dual medical rail can also be provided.

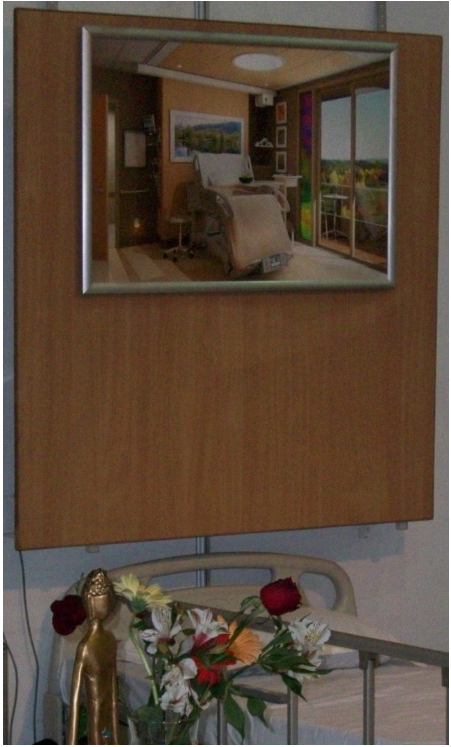

Customised Bed Head Panel Model 9060 X
- Wall or Surface Mounted, Mains Operated Bed-Head Panel can be customised in dimensions for use behind windows, corners or designed to hospital architecture, interiors or décor.
- Extruded Aluminium sheet body, machine pressed, pre-treated and powder coated with a smooth easy-to-clean surface and durable finish.
- Panel lengths, widths and heights can be adjusted to include requisite gas, data and electrical outlets.
- Location of medical gas and electrical fittings are designed to meet safety criteria as well as satisfy customer's configuration and requirements.
- Panels can be in colour of choice and patterns to match with room interiors, Wood finishes are available.
- Panels can also be designed to conceal visible outlets eg. gas, data and electricals or display pictures if required.
- Panels can also be pre-wired using flame retardant cables and electrically harnessed for safety and come with premium grade electrical and data fittings. These are ready-to-connect panels making installation safer, faster and easier.
- Removable front surface for servicing gas, data and electrical outlets and components.
- Panel can include an internationally dimensioned medical rail in S.S. 304. Rails are designed to carry useful accessories like I.V. Pole, syringe pump holder, utility basket, case sheet holder, medicine bowl holder, B.P. instrument holder, monitor tray, etc.
